Bargstedt THL 20 Horizontal storage system with saw

Posted By :
Comments : 0

Bargstedt automatic storage system with integrated saw

Plate storage system:
Manufacturer: Bargstedt, Model: THL 20
Bhsoawdyoy
Saw:
Manufacturer: Holzma, Model: HPV 23
Currently in use and in very good condition.
You can see the machine at work.

Price: 31 000 EUR, negotiable.
We issue invoices.

Technical information.
Plate storage system:
• Production year 1998
• Longitudinal turnout – 30,000 mm
• Transverse travel – 12000 mm
• Package height max – 2050 mm
• Max material width – 2070 mm
• Material width min – 600 mm
• Max. Length of material – 4100 mm
• Material length min – 2000 mm
• Material thickness min – 8 mm
• Load capacity – 250 kg

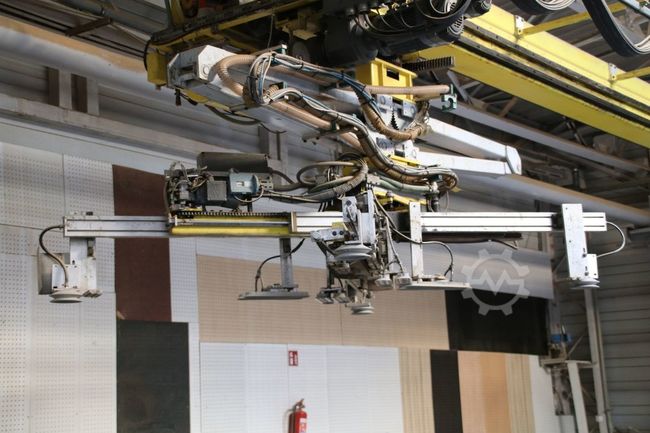

• Vacuum hoist
• Turning tool
• Adaptation to the plate size – CNC controlled

Saw:
• Year of manufacture – 1999
• Cutting length – 4300 mm
• Length to the slide – 4300 mm
• Saw blade allowance – 140 mm
• Main motor – 30 kW
• Loading with a lift
• Automatic plate conveyor
• Turning tool – Table on air cushions
• Software – HOLZMA SCHNITT PROFIT
• Machine control – HOLZMA CADMATIC 3.0
• Pressure allows acquiring 90 degree angles
• Dual angle measuring device
• Rotary table on air cushions
• Pre-stacking table
• Number of clamping teeth – 9
• Feed rate max – 100 m / min
• Stepless feed
• Saw blade diameter max – 520 mm
• Label printer
• Limiter side – Law
• CE mark
• Area min. length / width / height [mm] – 35000x11000x3000

If you would like to acquire more information, machine photos or movie, feel free to contact us. We speak Polish, English and German.

Machine Data

Machine IDWM258702
Bargstedt THL 20
Machine typeHorizontal storage system with saw
ManufacturerBargstedt
ModelTHL 20
Year of manufacture1998
Conditiongood (used)

Price and Location

Price34.1000
Currency
LocationMikołów , Poland

Seller

Yusuf Topcu
Company NameCNC.ist
Authorized PersonYusuf Topcu
Websitewww.cnc.ist
Phone+905324419163
Mobile Phone+905324419163
