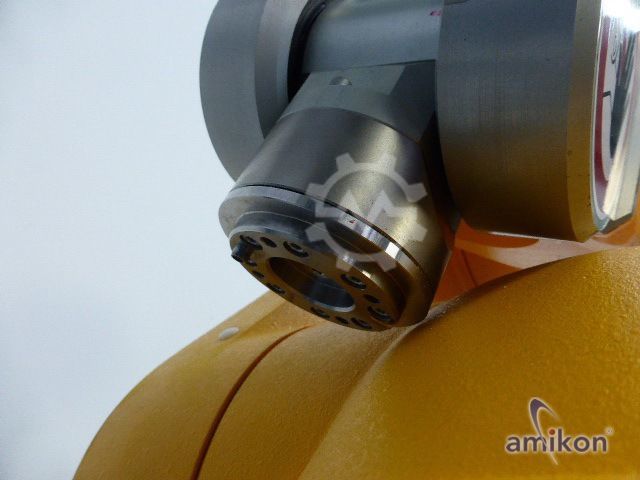

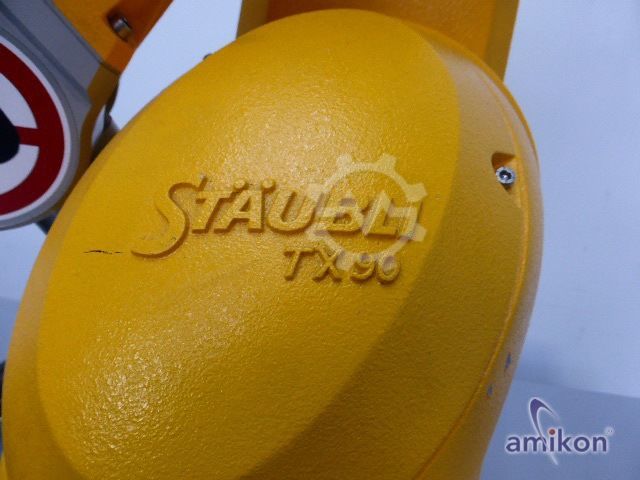

Here we offer a Stäubli six axis robot TX90 with control CS8C & new handheld SP1.
The high-performance robots TX90 series for medium-sized payloads offer due to their compact,
Slim design maximum flexibility for many applications. Thanks to the three Assembly
possibilities of floor, wall and ceiling are easy-to-integrate the robot.
The fully sealed construction (IP 65) allows the use in clean rooms
or in aggressive environments.
Features
Completely enclosed design with internal supply lines
Rigid structure
Multiple mounting options
Patented Stäubli JCM transmission modules
Long range
Advantages
Perfect protection of the components.
Standard design in clean room class ISO 5.
Easy to clean.
Excellent dynamic behaviour of railway
High flexibility
H7lkdgqju
Precision, dynamics and speed with reduced maintenance
Optimum use of the working space
Technical data
Type: TX90
Number of degrees of freedom 6
Nominal load capacity 6 kg
Maximum load capacity 15kg
Reach 1200 mm
Repetition accuracy ±0. 035 mm
Protection class (wrist) IP65 (IP67)
Mounting options floor / wall / ceiling
Control Stäubli CS8C TX90
Features
Ethernet, fieldbus, digital inputs and outputs, serial interfaces
Simply integrable, 19-inch rack version, protection class IP20
All of the ports on the front
Proven digital technology
Advantages
Open architecture
Com
