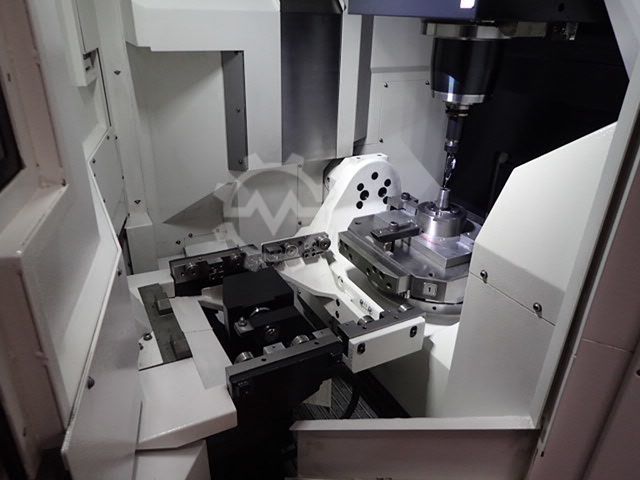

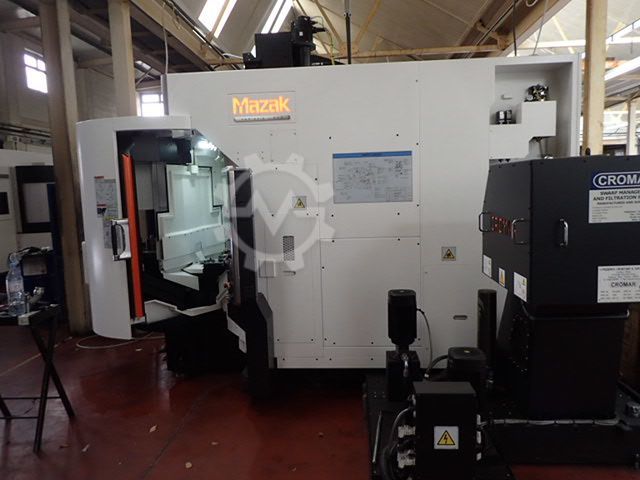

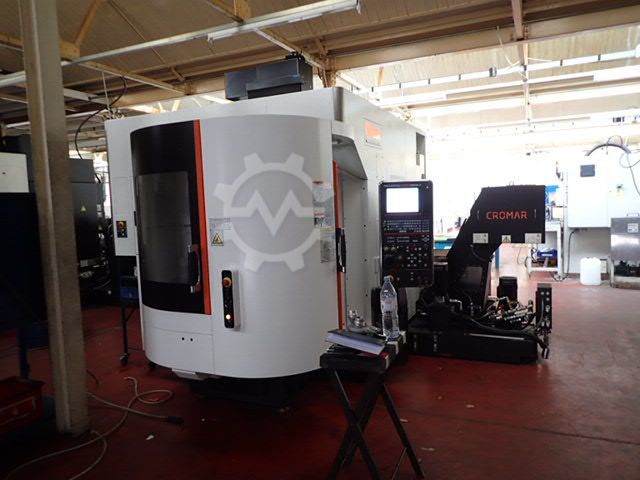

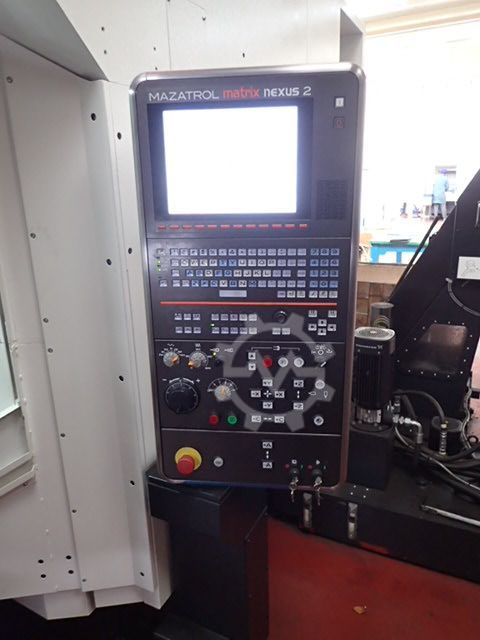

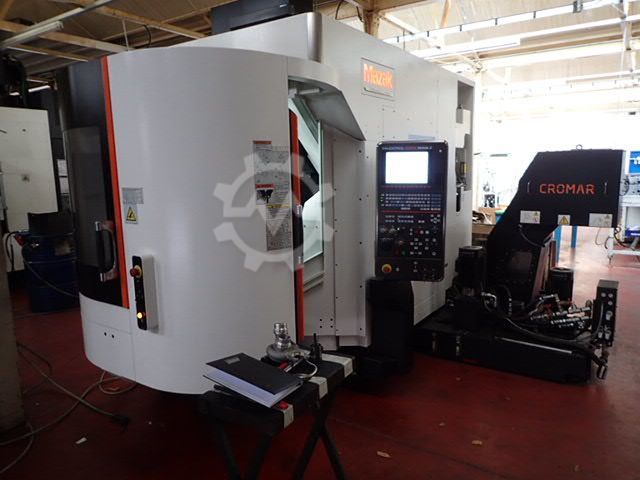

Mazak Variaxis j500 5 axis Vertical Machining Centre, 2015, s/n 264689, Mazak Matrix 2 Control, Twin pallet, Simultaneous 4-Axis capabilities and A-axis indexing, 4+1, 12,000rpm, through spindle coolant, auto tool breakage detection, 18 station ATC, BT40, Max work dia 500mm, Max work height 350mm, 11kw motor, A-axis 150 degrees, C-axis 360,000 degrees, X-axis 350mm, Y-axis 550mm, Z-axis 510mm, swarf conveyor, micromag in line filter, Control options:EIA, Spiral, EIA 3d comp, Rotation, Geometric, Scaling, EExt-Data I/O, Shape Comp, Thread, Inverse time, Auto tlm, Polar coordinates input, Comparison stop, G54.1, Sync mill tapping, GOO slope const, Variable 600 sets, EIA helical tap cycle, EIA pattern cycle, Tilted working plane, NC5th axis, Pitch error comp. Power On 5491, Auto Op 3439, Auto Cut 3368, Total Cut 1263 Hrs
Machine Data |
Machine ID | WM242855 |
Mazak Variaxis j500 |
Machine type | Mazak Variaxis j500 |
Manufacturer | Mazak Variaxis |
Model | j500 |
Year of manufacture | 2015 |
Condition | good condition (used) |
Price and Location | Location | West Lothian EH54 9HW, United Kingdom |
Seller |
| Company Name | CNC.ist | Authorized Person | Yusuf Topcu | Website | www.cnc.ist | Phone | +905324419163 | Mobile Phone | +905324419163 | |
|
|
