Robots »
Mitsubishi RH 3FH5515 1D1 S15 Robot
Comments : 0
Mitsubishi
Here we offer a Mitsubishi industrial robot.
Payload (kg) 3
degrees of freedom 4
Speed (mm/s) 7200
Repeatability (mm) 0.01
Cycle time (s) 0.44
max. reach radius (mm) 400
Operating range J1 (degrees) 264
Operating range J2 (degrees) 282
Operating range J4 (degrees) 720
Z-axis stroke (mm) 180
Controller type CR751-D
Protection class IP20
Power supply 1 phase (VAC) 200-253
Power consumption (VA) 500
Product dimensions & weight
Width (mm) 130
Height (mm) 511.5
Depth (mm) 580
Weight (kg) 14
Pxtcma
Type: RH-3FH5515-1D1-S15 + CR751-03HD1-0-S15
Condition: used / used

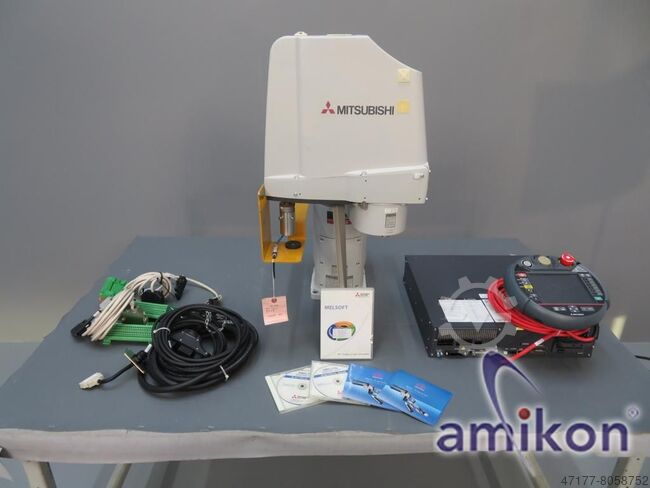

Scope of delivery: (see picture)
(Changes and errors in technical data, specifications are reserved!)
Further questions we can answer on the phone for you.
The listing was translated automatically. Translation errors are possible.
Machine Data | |||||||||||||||
| Machine ID | WM258990 | ||||||||||||||
| Machine type | Robot | ||||||||||||||
| Manufacturer | Mitsubishi | ||||||||||||||
| Model | RH-3FH5515-1D1-S15 | ||||||||||||||
| Condition | excellent (used) | Price and Location | |||||||||||||
